Products / Security

Intelligent devices for enhanced safety.

Our processors power the world’s security cameras—in homes, businesses, airports, intersections, and more. Designed specifically for devices at the edge, Ambarella chips offer a unique combination of computer vision performance, industry-leading image processing, low-bitrate streaming at high resolutions, and low power consumption—all on a single, embedded architecture.

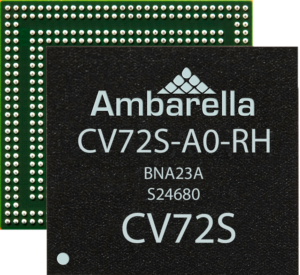

CV72S

Ambarella’s CV72S system on chip (SoC) provides 4KP60+ image processing, video encoding / decoding, and CVflow® computer vision processing in a single, low-power design. Fabricated in advanced 5 nm process technology, it achieves an industry-leading combination of low power and high performance in both human vision and computer vision applications.

Key Features

  • 4KP60+ video performance with flexible multi-streaming capability
  • Computer vision toolkit to ease the porting of CNNs trained using frameworks such as Caffe, PyTorch, TensorFlow, or ONNX, as well as traditional computer vision code using Ambarella primitive language
  • Target applications include Internet protocol (IP) cameras, consumer and industrial robots, sports / action cameras, video conferencing cameras, and drones

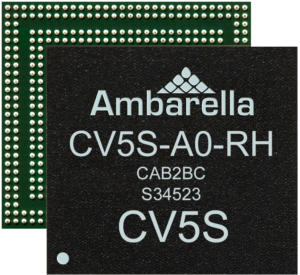

CV5S

Ambarella’s CV5S provides 8K image processing, video encoding / decoding, and CVflow® computer vision processing in a single, low-power design. Fabricated in advanced 5 nm process technology, CV5S achieves power consumption below 4W for 8K video recording at 30 fps—suited for IP, robotics, and machine vision applications.

Key Features

  • 8KP30 video encoding performance with multi-streaming capability
  • CNN toolkit for easy porting of neural networks implemented in Caffe, TensorFlow, PyTorch, or ONNX frameworks
  • Superior low-light processing

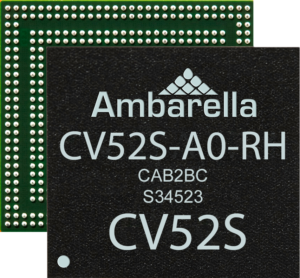

CV52S

Ambarella’s CV52S provides 4K image processing, video encoding / decoding, and CVflow® computer vision processing in a single, low-power design while achieving power consumption below 3W for 4KP60 video recording with advanced AI processing at 30 fps.

Key Features

  • 4KP60 encoding with multiple substreams video performance
  • CNN toolkit for easy porting of neural networks implemented in Caffe, TensorFlow, PyTorch, or ONNX frameworks
  • Enhanced secure boot with TrustZone® and secure memory, true random number generator (TRNG), one-time programmable memory (OTP), Arm trusted base system architecture (TBSA) compliance, DRAM scrambling, and virtualization
  • 4K IP cameras with advanced artificial intelligence (AI), intelligent traffic systems (ITS) cameras, machine vision and robotics applications

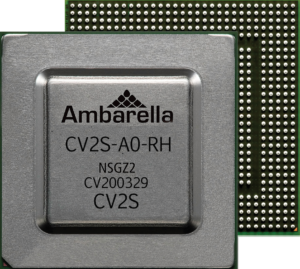

CV2S

Designed for high-performance surveillance cameras with advanced computer vision features, the CV2S chip delivers industry-leading image processing, stereovision capabilities, 4KP60 video encoding, along with CVflow® computer vision architecture.

Key features

  • CNN- / DNN-based processing: detection, classification, tracking, and more
  • Dedicated CVflow computer vision processor
  • Tools for high- and low-level algorithm development
  • Dedicated hardware for stereo processing
  • CNN toolkit for easy porting with Caffe, TensorFlow, and ONNX
  • Advanced image processing, with HDR, dewarping, EIS, MCTF, superior low-light imaging, and more
  • High-efficiency video encoding up to 4KP60 performance
  • Secure boot with TrustZone® and secure memory, true random number generator (TRNG), one-time programmable memory (OTP), DRAM scrambling and virtualization

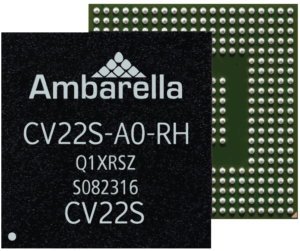

CV22S

Ambarella’s CV22S SoC combines advanced image processing, 4KP30+ video encoding, powerful CVflow® computer vision performance, and a full suite of cybersecurity features to enable the next generation of intelligent IP camera designs.

Key features

  • CNN- / DNN-based processing: detection, classification, tracking, and more
  • Dedicated CVflow computer vision processor
  • Tools for high- and low-level algorithm development
  • CNN toolkit for easy porting with Caffe, TensorFlow, and ONNX
  • Advanced image processing with HDR, dewarping, EIS, MCTF, superior low-light imaging, and more
  • High-efficiency video encoding up to 4KP30+ performance
  • Secure boot with TrustZone® and secure memory, true random number generator (TRNG), one-time programmable memory (OTP), DRAM scrambling and virtualization

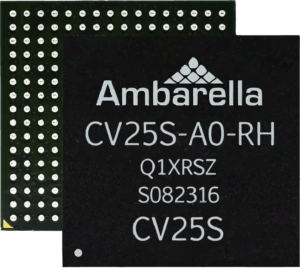

CV25S

The CV25S chip powers the next generation of affordable and intelligent home monitoring and professional surveillance solutions on the edge, combining advanced image processing, high-resolution video encoding, CVflow® computer vision performance, and a full suite of cybersecurity features.

Key features

  • CNN- / DNN-based processing: detection, classification, tracking, and more
  • Dedicated CVflow computer vision processor
  • Tools for high- and low-level algorithm development
  • CNN toolkit for easy porting with Caffe, TensorFlow, and ONNX
  • Advanced image processing with HDR, dewarping, EIS, MCTF, superior low-light imaging, and more
  • High-efficiency video encoding up to 4KP30+ performance
  • Secure boot with TrustZone® and secure memory, true random number generator (TRNG), one-time programmable memory (OTP), DRAM scrambling and virtualization

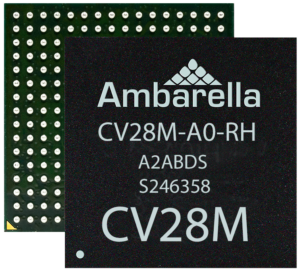

CV28M

The CV28M SoC is designed for intelligent applications at the edge, including smart home security, retail monitoring, consumer robotics, and occupancy monitoring. The chip’s high-performance CVflow® architecture provides deep neural network (DNN) computer vision processing and 4KP30 video encoding, enabling an array of computer vision-based devices.

Key features

  • CVflow computer vision engine
  • CNN / DNN inference acceleration for detection, classification, and more
  • CNN toolkit for easy porting with Caffe, TensorFlow, and ONNX
  • Up to 4KP30 video performance
  • Advanced image processing with HDR, dewarping, EIS, MCTF, superior low-light imaging, and more
  • Secure boot with TrustZone® and secure memory, true random number generator (TRNG), one-time programmable memory (OTP), DRAM scrambling and virtualization

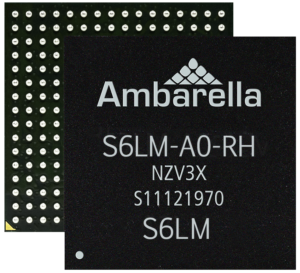

S6LM

Targeting the next generation of professional and home monitoring applications, including video doorbells and battery-powered cameras, the S6LM includes Ambarella’s latest high dynamic range (HDR) and low-light processing technology, highly efficient 5MP30 + 720p30 + 5MP1 H.264 and H.265 encoding, multi-streaming, on-chip 360-degree dewarping, cyber-security features, and a quad-core Arm® CPU. Fully software compatible with Ambarella’s CVflow® family of chips, the S6LM addresses applications that require the highest image quality, lowest-power operation, and cybersecurity protection, while remaining affordable for cost-conscious markets.

Key features

  • Advanced cybersecurity features
  • Up to 400 MPixel/s input rate
  • Multi-exposure line-interleaved HDR
  • Superior low-light processing
  • Flexible low-power platform
S5L_sm

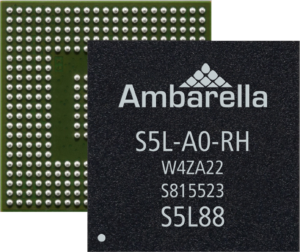

S5L

The S5L chip is designed for professional, consumer, and battery-powered IP cameras, offering 4K high dynamic range (HDR) processing, multi-streaming, on-chip lens distortion correction, advanced low-light performance, and dual video inputs.

Key features

  • 64-bit Arm® quad-core Cortex®-A53 CPU up to 1.0 GHz with L2 cache
  • Advanced image processing with HDR, lens distortion correction, EIS, MCTF, and more
  • H.265 and H.264 video compression up to 4KP30 performance

S3L

Featuring the H.265 compression standard, the S3L SoC targets HD IP cameras up to 5M, while the S3LM SoC is designed for small form-factor consumer H.265 cloud cameras up to 3M.

Key features

  • Arm® Cortex®-A9 CPU
  • Advanced image processing with HDR, hardware dewarp for 180˚ panorama, and more
  • H.265 and H.264 video compression
  • Flexible multi-streaming

S2L

Designed for both consumer and professional applications, the S2L family brings advanced high dynamic range (HDR) processing, wide-angle viewing, high resolution video up to 5MP30 (3MP30 for S2LM), and on-board analytics into the mainstream.

Key features

  • Arm® Cortex®-A9 CPU
  • Advanced image processing
  • Smart-AVC streaming as low as 600 Kbps for 1080p30
  • Flexible multi-streaming
